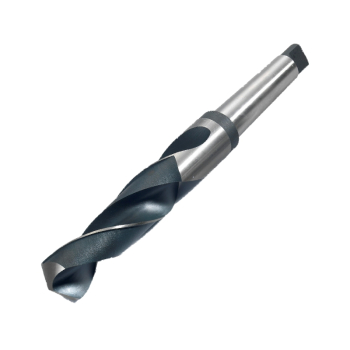

Morse Taper Drill Bits

Flute Type
Standard helix,right hand spiral,ground flutes
Point Angle
118°
Surface Treatment
Blue oxide
Application
Drills in steel, high tensile steel up to 1.000N/mm2, cast steel, cast iron, metals and hard plastics.
Manufactured To
Din 345
Material
HSS

There are no downloads for this product.

You need to be logged in to see prices.
Code Description Diameter Flute Length(mm) Overall Length(mm) Morse Taper Pack Qty Packaged In/On Price
5201-0040 HSS TS MT1 4.0 DIN345 DRILLS 4.0mm 43 124 1 1 Box
5201-0050 HSS TS MT1 5.0 DIN345 DRILLS 5.0mm 52 133 1 1 Box
5201-0060 HSS TS MT1 6.0 DIN345 DRILLS 6.0mm 57 138 1 1 Box
5201-0070 HSS TS MT1 7.0 DIN345 DRILLS 7.0mm 69 150 1 1 Box
5201-0080 HSS TS MT1 8.0 DIN345 DRILLS 8.0mm 75 156 1 1 Box
5201-0085 HSS TS MT1 8.50 DIN345 DRILLS 8.5mm 75 156 1 1 Box
5201-0090 HSS TS MT1 9.0 DIN345 DRILLS 9.0mm 81 162 1 1 Box
5201-0100 HSS TS MT1 10.0 DIN345 DRILLS 10.0mm 87 168 1 1 Box
5201-0102 HSS TS MT1 10.2 DIN345 DRILLS 10.2mm 87 168 1 1 Box
5201-0105 HSS TS MT1 10.5 DIN345 DRILLS 10.5mm 87 168 1 1 Box
5201-0110 HSS TS MT1 11.0 DIN345 DRILLS 11.0mm 94 175 1 1 Box
5201-0115 HSS TS MT1 11.5 DIN345 DRILLS 11.5mm 94 175 1 1 Box
5201-0120 HSS TS MT1 12.0 DIN345 DRILLS 12.0mm 101 182 1 1 Box
5201-0125 HSS TS MT1 12.5 DIN345 DRILLS 12.5mm 101 182 1 1 Box
5201-0130 HSS TS MT1 13.0 DIN345 DRILLS 13.0mm 101 182 1 1 Box
5201-0135 HSS TS MT1 13.5 DIN345 DRILLS 13.5mm 108 189 1 1 Box
5201-0140 HSS TS MT1 14.0 DIN345 DRILLS 14.0mm 108 189 1 1 Box
5201-2145 HSS TS MT2 14.5 DIN345 DRILLS 14.5mm 114 212 2 1 Box
5201-2150 HSS TS MT2 15.0 DIN345 DRILLS 15.0mm 114 212 2 1 Box
5201-2155 HSS TS MT2 15.5 DIN345 DRILLS 15.5mm 120 218 2 1 Box
5201-2160 HSS TS MT2 16.0 DIN345 DRILLS 16.0mm 120 218 2 1 Box
5201-2165 HSS TS MT2 16.5 DIN345 DRILLS 16.5mm 125 223 2 1 Box
5201-2170 HSS TS MT2 17.0 DIN345 DRILLS 17.0mm 125 223 2 1 Box
5201-2175 HSS TS MT2 17.5 DIN345 DRILLS 17.5mm 130 228 2 1 Box
5201-2180 HSS TS MT2 18.0 DIN345 DRILLS 18.0mm 130 228 2 1 Box
5201-2185 HSS TS MT2 18.5 DIN345 DRILLS 18.5mm 135 233 2 1 Box
5201-2190 HSS TS MT2 19.0 DIN345 DRILLS 19.0mm 135 233 2 1 Box
5201-2195 HSS TS MT2 19.5 DIN345 DRILLS 19.5mm 140 238 2 1 Box
5201-2200 HSS TS MT2 20.0 DIN345 DRILLS 20.0mm 140 238 2 1 Box
5201-2205 HSS TS MT2 20.5 DIN345 DRILLS 20.5mm 145 243 2 1 Box
5201-2210 HSS TS MT2 21.0 DIN345 DRILLS 21.0mm 145 243 2 1 Box
5201-2215 HSS TS MT2 21.5 DIN345 DRILLS 21.5mm 150 248 2 1 Box
5201-2220 HSS TS MT2 22.0 DIN345 DRILLS 22.0mm 150 248 2 1 Box
5201-2225 HSS TS MT2 22.5 DIN345 DRILLS 22.5mm 155 253 2 1 Box
5201-2230 HSS TS MT2 23.0 DIN345 DRILLS 23.0mm 155 253 2 1 Box
5201-4235 HSS TS MT3 23.50 DIN345 DRILLS 23.5mm 155 276 3 1 Box
5201-4240 HSS TS MT3 24.0 DIN345 DRILLS 24.0mm 160 281 3 1 Box
5201-4245 HSS TS MT3 24.50 DIN345 DRILLS 24.5mm 160 281 3 1 Box
5201-4250 HSS TS MT3 25.0 DIN345 DRILLS 25.0mm 160 281 3 1 Box
5201-4255 HSS TS MT3 25.50 DIN345 DRILLS 25.5mm 165 286 3 1 Box
5201-4260 HSS TS MT3 26.0 DIN345 DRILLS 26.0mm 165 286 3 1 Box
5201-4265 HSS TS MT3 26.50 DIN345 DRILLS 26.5mm 165 286 3 1 Box
5201-4270 HSS TS MT3 27.0 DIN345 DRILLS 27.0mm 170 291 3 1 Box
5201-4275 HSS TS MT3 27.50 DIN345 DRILLS 27.5mm 170 291 3 1 Box
5201-4280 HSS TS MT3 28.0 DIN345 DRILLS 28.0mm 170 291 3 1 Box
5201-4285 HSS TS MT3 28.50 DIN345 DRILLS 28.5mm 175 296 3 1 Box
5201-4290 HSS TS MT3 29.0 DIN345 DRILLS 29.0mm 175 296 3 1 Box
5201-4295 HSS TS MT3 29.50 DIN345 DRILLS 29.5mm 175 296 3 1 Box
5201-4300 HSS TS MT3 30.0 DIN345 DRILLS 30.0mm 175 296 3 1 Box
5201-4305 HSS TS MT3 30.50 DIN345 DRILLS 30.5mm 180 301 3 1 Box
5201-4310 HSS TS MT3 31.0 DIN345 DRILLS 31.0mm 180 301 3 1 Box
5201-4315 HSS TS MT3 31.50 DIN345 DRILLS 31.5mm 180 301 3 1 Box
5201-6320 HSS TS MT4 32.0 DIN345 DRILLS 32.0mm 185 334 4 1 Box
5201-6330 HSS TS MT4 33.0 DIN345 DRILLS 33.0mm 185 334 4 1 Box
5201-6340 HSS TS MT4 34.0 DIN345 DRILLS 34.0mm 190 339 4 1 Box
5201-6350 HSS TS MT4 35.0 DIN345 DRILLS 35.0mm 190 339 4 1 Box
5201-6360 HSS TS MT4 36.0 DIN345 DRILLS 36.0mm 195 344 4 1 Box
5201-6370 HSS TS MT4 37.0 DIN345 DRILLS 37.0mm 195 344 4 1 Box
5201-6380 HSS TS MT4 38.0 DIN345 DRILLS 38.0mm 200 349 4 1 Box
5201-6390 HSS TS MT4 39.0 DIN345 DRILLS 39.0mm 200 349 4 1 Box
5201-6400 HSS TS MT4 40.0 DIN345 DRILLS 40.0mm 200 349 4 1 Box
5201-6410 HSS TS MT4 41.0 DIN345 DRILLS 41.0mm 205 354 4 1 Box
5201-6420 HSS TS MT4 42.0 DIN345 DRILLS 42.0mm 205 354 4 1 Box
5201-6430 HSS TS MT4 43.0 DIN345 DRILLS 43.0mm 210 359 4 1 Box
5201-6440 HSS TS MT4 44.0 DIN345 DRILLS 44.0mm 210 359 4 1 Box
5201-6450 HSS TS MT4 45.0 DIN345 DRILLS 45.0mm 210 359 4 1 Box
5201-6455 HSS TS MT4 45.5 DIN345 DRILLS 45.5mm 215 364 4 1 Box
5201-6460 HSS TS MT4 46.0 DIN345 DRILLS 46.0mm 215 364 4 1 Box
5201-6470 HSS TS MT4 47.0 DIN345 DRILLS 47.0mm 215 364 4 1 Box
5201-6480 HSS TS MT4 48.0 DIN345 DRILLS 48.0mm 220 369 4 1 Box
5201-6500 HSS TS MT4 50.0 DIN345 DRILLS 50.0mm 220 369 4 1 Box
5201-1008 HSS TS MT1 1/8 DIN345 DRILLS 1/8" 36 117 1 1 Box
5201-1012 HSS TS MT1 3/16 DIN345 DRILLS 3/16" 52 133 1 1 Box
5201-1016 HSS TS MT1 1/4 DIN345 DRILLS 1/4" 63 144 1 1 Box
5201-1020 HSS TS MT1 5/16 DIN345 DRILLS 5/16" 75 156 1 1 Box
5201-1024 HSS TS MT1 3/8 DIN345 DRILLS 3/8" 87 168 1 1 Box
5201-1028 HSS TS MT1 7/16 DIN345 DRILLS 7/16" 94 175 1 1 Box
5201-1032 HSS TS MT1 1/2 DIN345 DRILLS 1/2" 101 182 1 1 Box
5201-3036 HSS TS MT2 9/16 DIN345 DRILLS 9/16" 114 212 2 1 Box
5201-3038 HSS TS MT2 19/32 DIN345 DRILLS 19/32" 120 218 2 1 Box
5201-3040 HSS TS MT2 5/8 DIN345 DRILLS 5/8" 120 218 2 1 Box
5201-3042 HSS TS MT2 21/32 DIN345 DRILLS 21/32" 125 223 2 1 Box
5201-3044 HSS TS MT2 11/16 DIN345 DRILLS 11/16" 130 228 2 1 Box
5201-3046 HSS TS MT2 23/32 DIN345 DRILLS 23/32" 135 233 2 1 Box
5201-3048 HSS TS MT2 3/4 DIN345 DRILLS 3/4" 140 238 2 1 Box
5201-3050 HSS TS MT2 25/32 DIN345 DRILLS 25/32" 140 238 2 1 Box
5201-3052 HSS TS MT2 13/16 DIN345 DRILLS 13/16" 145 243 2 1 Box
5201-3054 HSS TS MT2 27/32 DIN345 DRILLS 27/32" 150 248 2 1 Box
5201-3056 HSS TS MT2 7/8 DIN345 DRILLS 7/8" 150 248 2 1 Box
5201-5060 HSS TS MT3 15/16 DIN345 DRILLS 15/16" 160 281 3 1 Box
5201-5100 HSS TS MT3 1 inch DIN345 DRILLS 1" 165 286 3 1 Box
5201-5104 HSS TS MT3 1.1/16 DIN345 DRILLS 1.1/16" 170 291 3 1 Box
5201-5108 HSS TS MT3 1.1/8 DIN345 DRILLS 1.1/8" 175 296 3 1 Box
5201-5112 HSS TS MT3 1.3/16 DIN345 DRILLS 1.3/16" 180 301 3 1 Box
5201-5116 HSS TS MT3 1.1/4 DIN345 DRILLS 1.1/4" 185 306 3 1 Box
5201-7120 HSS TS MT4 1.5/16 DIN345 DRILLS 1.5/16" 185 334 4 1 Box
5201-7132 HSS TS MT4 1.1/2 DIN345 DRILLS 1.1/2" 200 349 4 1 Box
5201-7148 HSS TS MT4 1.3/4 DIN345 DRILLS 1.3/4" 210 359 4 1 Box
5201-7200 HSS TS MT4 2 inch DIN345 DRILLS 2" 225 374 4 1 Box
