Descriptions

Shank Type
Quick change Hex shank 1/4"
Application
Drilling Porcelain(Grade 5),Granite,Marble,Ceramics,Terracotta,Glass,Quarry Tiles,Travertine
Tip Material
Vaccum brazed diamond core surface
For best results when drilling
1. Pre cool the tile core drill with a brief dip in coolant (water) or pour water around the area you wish to drill.
2. Offer up the tile core drill to the material at an angle of 45°
3. After creating a SMILE cut in the material raise the power tool to 90° and apply gentle pressure.
4. Gently oscillate the tile core drill in the hole, use a regular 5 second bursts during drilling.
5. Make sure the tile core drill is pr-dipped into the coolant (water) before every hole as per point 1.Tiles 10mm plus will need multiple dips.
Drilling vertical tiles on walls

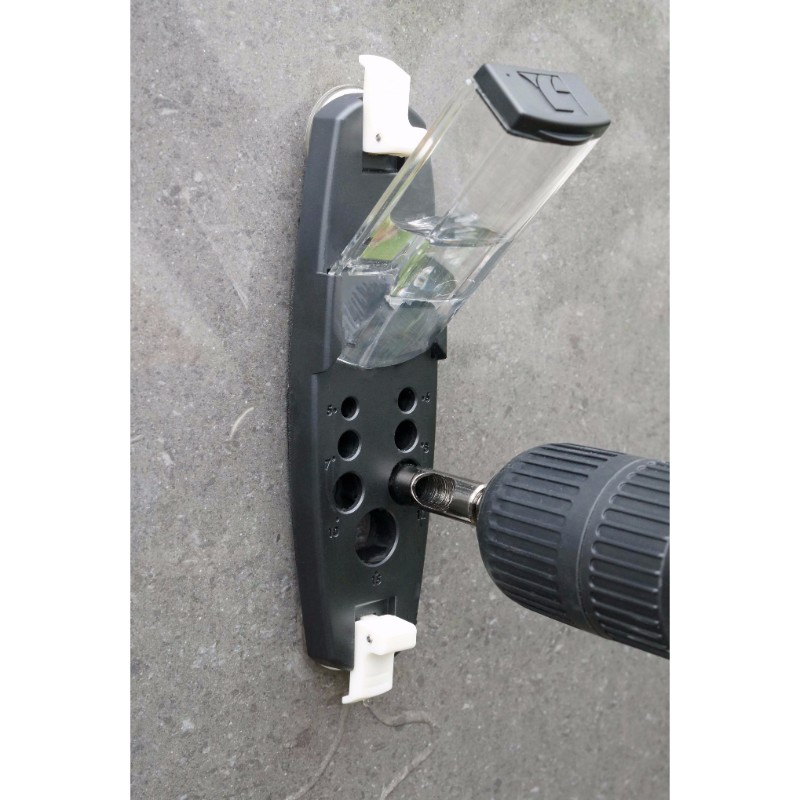

Pre cool the tile core drill with a brief dip in coolant (water) if drilling hole sizes 5,6,7,8,10,12,15mm use the tile core drill guide water dispenser for best results.
If water dispenser is not used follow point 1 to 5.

There are no downloads for this product.

You need to be logged in to see prices.
Code Description Diameter Shank Type Overall Length (mm) Core Depth Pack Qty Packaged In/On Suitable for Price
C240-0070 6.0mm Vacuum brazed diamond core-drill depth 27mm O/L 60mm 6.0mm 1/4" Quick change hex 60 27mm 1 Euro hanger Red plugs
You need to be logged in to see prices.
C240-0071 7.0mm Vacuum brazed diamond core-drill depth 27mm O/L 60mm 7.0mm 1/4" Quick change hex 60 27mm 1 Euro hanger Brown plugs
You need to be logged in to see prices.
C240-0072 8.0mm Vacuum brazed diamond core-drill depth 27mm O/L 60mm 8.0mm 1/4" Quick change hex 60 27mm 1 Euro hanger Blue plugs
You need to be logged in to see prices.
C240-0073 10.0mm Vacuum brazed diamond core-drill depth 27mm O/L 60mm 10.0mm 1/4" Quick change hex 60 27mm 1 Euro hanger Grey plugs/8mm pipe
You need to be logged in to see prices.
C240-0074 12.0mm Vacuum brazed diamond core-drill depth 27mm O/L 60mm 12.0mm 1/4" Quick change hex 60 27mm 1 Euro hanger Basin set/10mm pipe
You need to be logged in to see prices.
C240-0075 15.0mm Vacuum brazed diamond core-drill depth 27mm O/L 60mm 15.0mm 1/4" Quick change hex 60 27mm 1 Euro hanger 15mm copper pipe
You need to be logged in to see prices.
C240-0076 20.0mm Vacuum brazed diamond core-drill depth 27mm O/L 60mm 20.0mm 1/4" Quick change hex 60 27mm 1 Euro hanger 19mm copper pipe overflow pipe
You need to be logged in to see prices.
C240-0077 25.0mm Vacuum brazed diamond core-drill depth 27mm O/L 60mm 25.0mm 1/4" Quick change hex 60 27mm 1 Euro hanger 22mm copper pipe
You need to be logged in to see prices.
C240-0078 30.0mm Vacuum brazed diamond core-drill depth 27mm O/L 60mm 30.0mm 1/4" Quick change hex 60 27mm 1 Euro hanger 28mm copper pipe
You need to be logged in to see prices.
C240-0079 35.0mm Vacuum brazed diamond core-drill depth 27mm O/L 60mm 35.0mm 1/4" Quick change hex 60 27mm 1 Euro hanger Waste pipe
You need to be logged in to see prices.

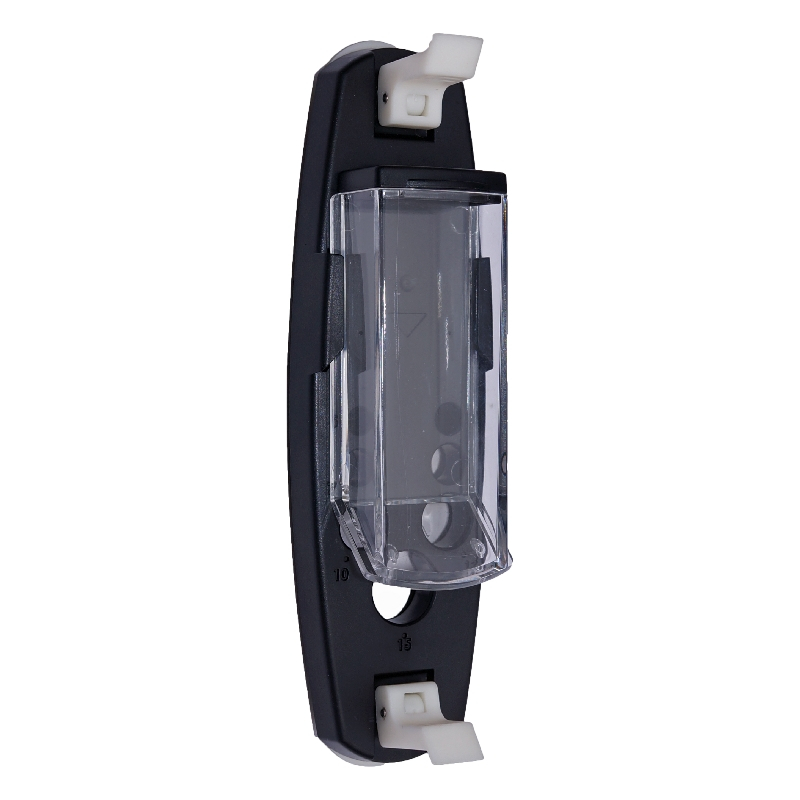

C240-0080 Tile drill guide water dispenser 5,6,7,8,10,12,15mm Tile drill guide water dispenser 5,6,7,8,10,12,15mm 1 Euro hanger
