Descriptions

SKODA REVOLVING CENTRES are High Precision,High Speed Centres, with needle bearings and axial bearings to carry the radial load, and heavy duty thrust bearings to take the axial thrust.The small outside diameter of the bearing housing gives particularly easy access to the workpiece.Adjustable clearance on the front radial bearing (MT2-6) ensures maximum accuracy.Regreasing is necessary at intervals through the screw hole in the main housing, and through the screw hole in the small end of the taper shank.Recommended greases are LV2-3 Lithium Grease, Alvania 2, Beacon 2, Centroplex 2, Duralith 2, FL-2,Litnol, HL3 LS2, Mobilux2.




There are no downloads for this product.

You need to be logged in to see prices.
Code Description Type Overall Length (mm) Morse Taper Centre Head Dia (mm) Runout Tolerance (mm) Max r.p.m Max Weight of Workpiece (Kg) Point Angle Price

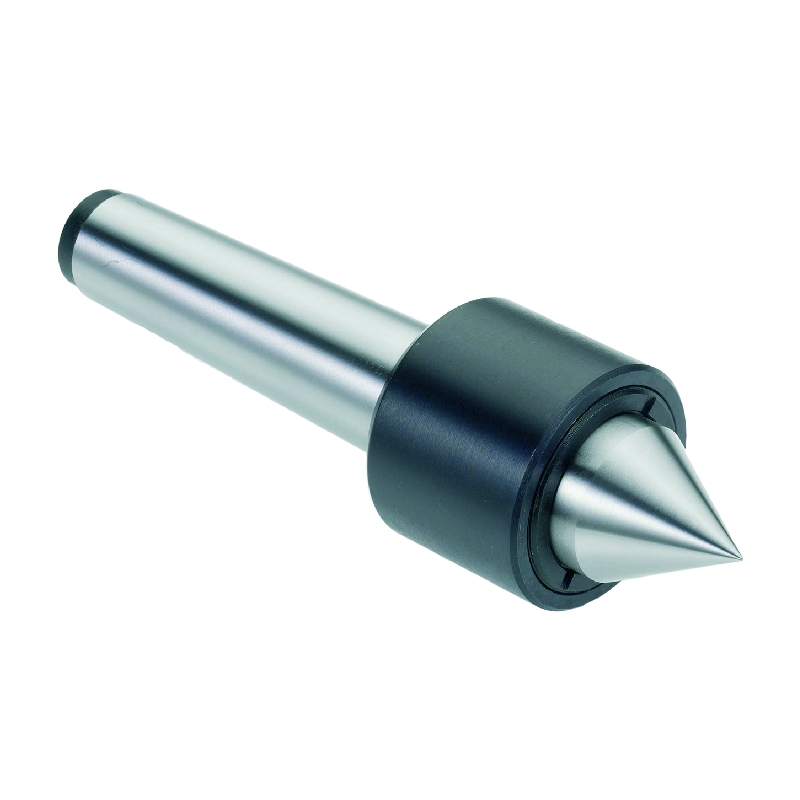

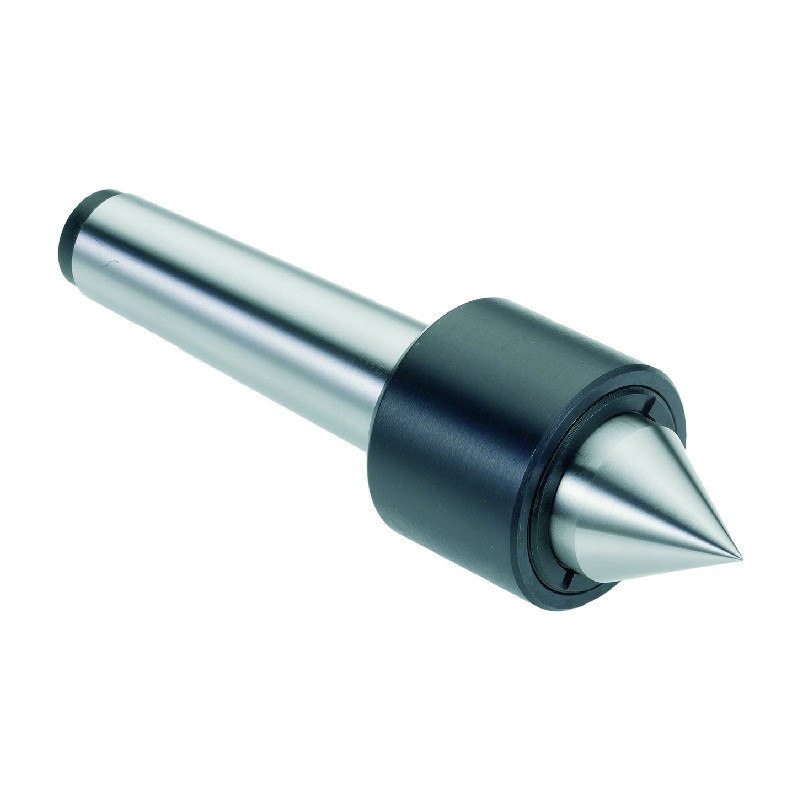

C700-0195 RLC1 MT1 60 Deg Point Skoda Lathe Centre Standard 114 MT1 34 0.007 6000 40 60?
You need to be logged in to see prices.
C700-0196 RLC2 MT2 60 Deg Point Skoda Lathe Centre Standard 125 MT2 36 0.007 6000 340 60?
You need to be logged in to see prices.
C700-0197 RLC3 MT3 60 Deg Point Skoda Lathe Centre Standard 162 MT3 47 0.007 5000 400 60?
You need to be logged in to see prices.
C700-0198 RLC4 MT4 60 Deg Point Skoda Lathe Centre Standard 194 MT4 55 0.007 4000 1300 60?
You need to be logged in to see prices.
C700-0199 RLC5 MT5 60 Deg Point Skoda Lathe Centre Standard 240 MT5 70 0.007 3500 2000 60?
You need to be logged in to see prices.
C700-0200 RLC6 MT6 60 Deg Point Skoda Lathe Centre Standard 318 MT6 90 0.007 2500 4000 60?
You need to be logged in to see prices.

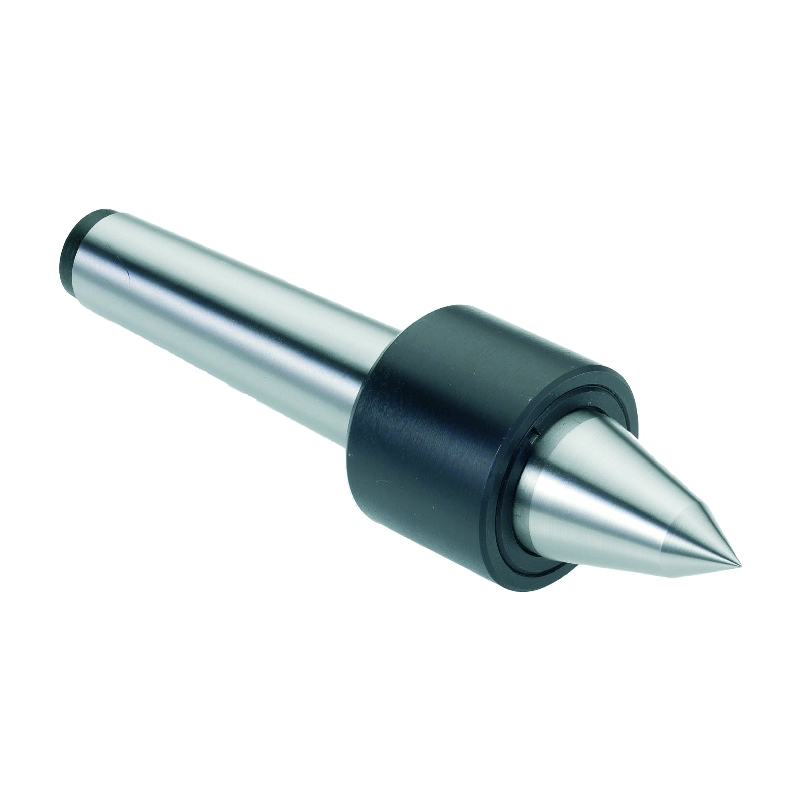

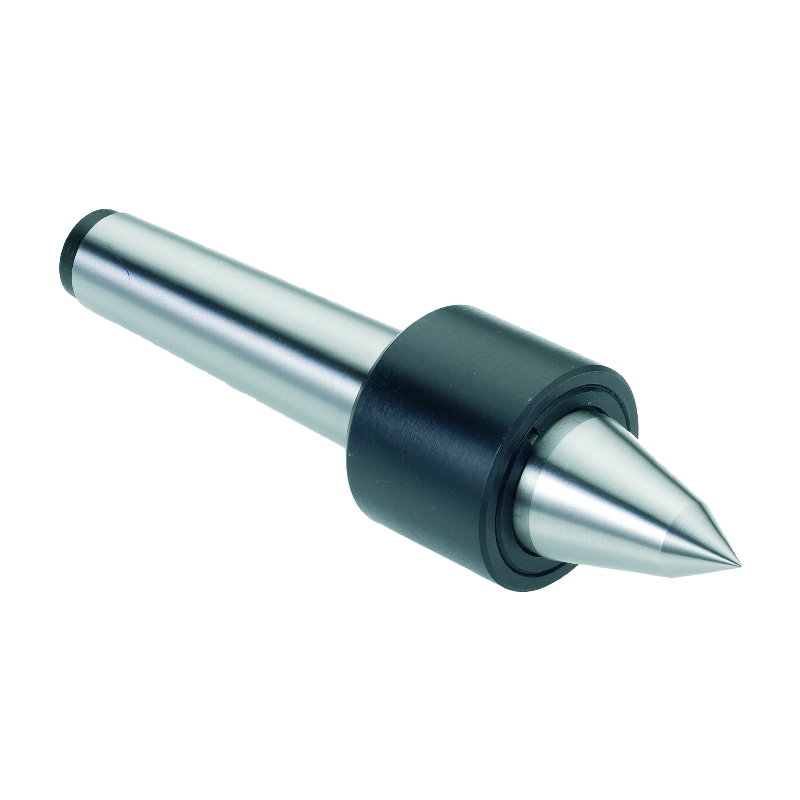

C700-0201 MT2 MT2 60 Deg Point Long Nose Revolving Centre Long Nose 128.5 MT2 36 0.01 6000 270 60?
You need to be logged in to see prices.
C700-0202 MT3 MT3 60 Deg Point Long Nose Revolving Centre Long Nose 167 MT3 47 0.01 5000 320 60?
You need to be logged in to see prices.
C700-0203 MT4 MT4 60 Deg Point Long Nose Revolving Centre Long Nose 207.5 MT4 55 0.01 4000 1000 60?
You need to be logged in to see prices.
C700-0204 MT5 MT5 60 Deg Point Long Nose Revolving Centre Long Nose 259 MT5 70 0.01 3500 1600 60?
You need to be logged in to see prices.
C700-0205 MT6 MT6 60 Deg Point Long Nose Revolving Centre Long Nose 341 MT6 89 0.01 2500 3200 60?
