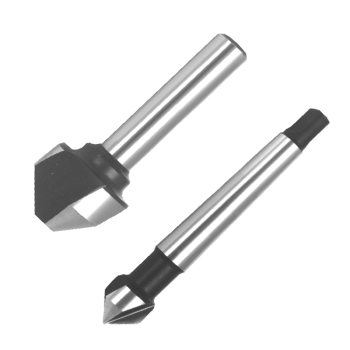

3 Flute 90° Countersinks
3 Flute 90° Countersinks

3 Flute 90° Countersinks

Descriptions

Execution
3 flutes.Ground all-over.90° included angle.
Shank
Part number 5763 - plain parallel shank.
Part number 5773 - morse taper shank.
Surface Treatment
Bright.
Application
To produce a countersink suitable for countersink head screws,also used as a deburring tool..
Manufactured To
Part number 5763 to Din 335C.
Part number 5773 to Din 335D.
Material
HSCo

There are no downloads for this product.

You need to be logged in to see prices.
Code Description Shank Size Diameter Shank type Overall Length(mm) Pack Qty Packaged In/On Price
5763-0060 PS C/SNK Cobalt deg 6.3 5mm Shk 3.5mm 6.3mm Parallel 45 1 Box
You need to be logged in to see prices.
5763-0080 PS C/SNK Cobalt 90deg 8.3 6mm Shk 6.0mm 8.0mm Parallel 50 1 Box
You need to be logged in to see prices.
5763-0100 PS C/SNK Cobalt 90deg 10.4 6mm Shk 6.0mm 10.0mm Parallel 50 1 Box
You need to be logged in to see prices.
5763-0125 PS C/SNK Cobalt 90deg 12.4 8mm Shk 8.0mm 12.5mm Parallel 56 1 Box
You need to be logged in to see prices.
5763-0160 PS C/SNK Cobalt 90deg 16.5 10mm Shk 10.0mm 16.0mm Parallel 60 1 Box
You need to be logged in to see prices.
5763-0200 PS C/SNK Cobalt 90deg 20.5 10mm Shk 10.0mm 20.0mm Parallel 63 1 Box
You need to be logged in to see prices.
5763-0250 PS C/SNK Cobalt 90deg 25.0 10mm Shk 10.0mm 25.0mm Parallel 67 1 Box
You need to be logged in to see prices.
5763-0906 PS C/SNK Cobalt 90deg 6Pc Set 6.3,8.3,10.4,12.4,16.5,20.5mm 5.0, 6.0, 6.0, 8.0, 10, 10mm 6.3, 8.3, 10.4, 12.4, 16.5, 20.5mm Parallel 45, 50, 50, 56, 60, 63mm 1 Case
You need to be logged in to see prices.
5773-0160 TS C/SNK 90deg 16.0 1 MTS 16.0mm Morse Taper Shank 85 1 Box
You need to be logged in to see prices.
5773-0200 TS C/SNK 90deg 20.0 2 MTS 20.0mm Morse Taper Shank 100 1 Box
You need to be logged in to see prices.
5773-0250 TS C/SNK 90deg 25.0 2 MTS 25.0mm Morse Taper Shank 106 1 Box
You need to be logged in to see prices.
5773-0315 TS C/SNK 90deg 31.5 2 MTS 31.5mm Morse Taper Shank 112 1 Box
You need to be logged in to see prices.
5773-0400 TS C/SNK 90deg 40.0 3 MTS 40.0mm Morse Taper Shank 140 1 Box
You need to be logged in to see prices.
5773-0500 TS C/SNK 90deg 50.0 3 MTS 50.0mm Morse Taper Shank 150 1 Box
You need to be logged in to see prices.
5773-0630 TS C/SNK 90deg 63.0 4 MTS 63.0mm Morse Taper Shank 180 1 Box

POA
5773-0800 TS C/SNK 90deg 80.0 4 MTS 80.0mm Morse Taper Shank 190 1 Box
You need to be logged in to see prices.
