BSPF(G) Taps
BSPF(G) Taps
BSPF(G) Taps

BSPF(G) Taps

Descriptions

Type of Thread
British standard pipe (parallel)
Tap Tolerance
BS 949 - 1982 part 3
Flute Type
Straight flutes
Surface Treatment
Bright
Application
For hand tapping of through or blind holes in steel, some stainless steels, cast irons and non-ferrous materials such as Aluminium & Brass.
Manufactured To
ISO 2284
Material
HSS
Pair Consists of
Taper & bottom

There are no downloads for this product.

You need to be logged in to see prices.

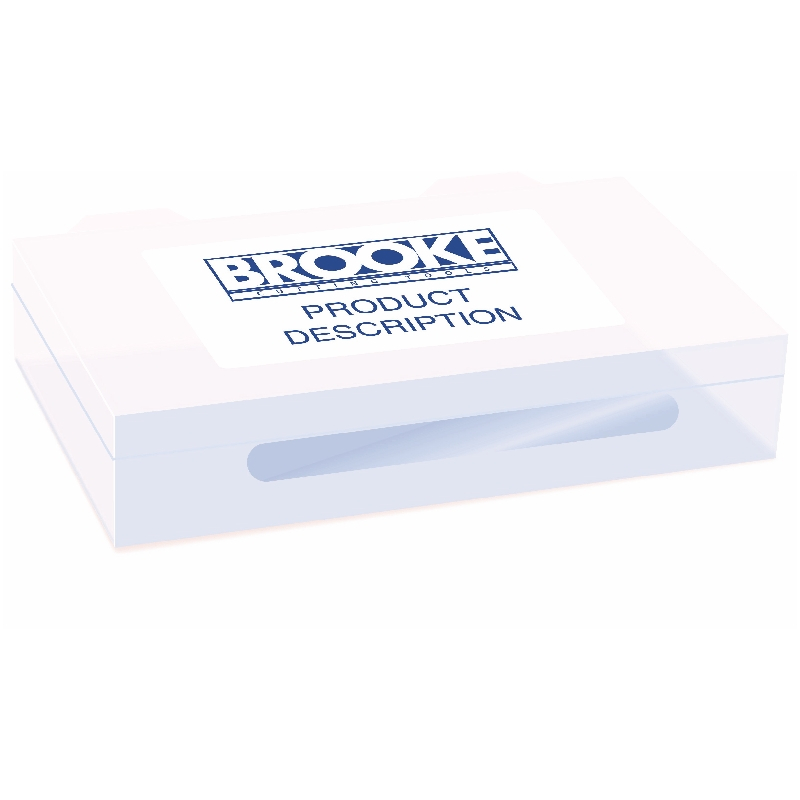

Code Description Diameter Type TPI Overall Length (mm) Thread Length (mm) Square Section (mm) Pack Qty Packaged In/On Price
5571-0008 BSPF(G) 1/8 PAIR TW2 TAP ISO 2284 Brooke 1/8" Pair 28 59 15 6.3 1 Box
You need to be logged in to see prices.
5571-00081 BSPF(G) 1/8 T'PR TW2 TAP ISO 2284 Brooke 1/8" Taper 28 59 15 6.3 1 Box
You need to be logged in to see prices.
5571-00082 BSPF(G) 1/8 SCND TW2 TAP ISO 2284 Brooke 1/8" Second 28 59 15 6.3 1 Box
You need to be logged in to see prices.
5571-00083 BSPF(G) 1/8 BOTG TW2 TAP ISO 2284 Brooke 1/8" Bottom 28 59 15 6.3 1 Box
You need to be logged in to see prices.
5571-0016 BSPF(G) 1/4 PAIR TW3 TAP ISO 2284 Brooke 1/4" Pair 19 67 19 8 1 Box
You need to be logged in to see prices.
5571-00161 BSPF(G) 1/4 T'PR TW3 TAP ISO 2284 Brooke 1/4" Taper 19 67 19 8 1 Box
You need to be logged in to see prices.
5571-00162 BSPF(G) 1/4 SCND TW3 TAP ISO 2284 Brooke 1/4" Second 19 67 19 8 1 Box
You need to be logged in to see prices.
5571-00163 BSPF(G) 1/4 BOTG TW3 TAP ISO 2284 Brooke 1/4" Bottom 19 67 19 8 1 Box
You need to be logged in to see prices.
5571-0024 BSPF(G) 3/8 PAIR TW4 TAP ISO 2284 Brooke 3/8" Pair 19 75 21 10 1 Box
You need to be logged in to see prices.
5571-00241 BSPF(G) 3/8 T'PR TW4 TAP ISO 2284 Brooke 3/8" Taper 19 75 21 10 1 Box
You need to be logged in to see prices.
5571-00242 BSPF(G) 3/8 SCND TW4 TAP ISO 2284 Brooke 3/8" Second 19 75 21 10 1 Box
You need to be logged in to see prices.
5571-00243 BSPF(G) 3/8 BOTG TW4 TAP ISO 2284 Brooke 3/8" Bottom 19 75 21 10 1 Box
You need to be logged in to see prices.
5571-0032 BSPF(G) 1/2 PAIR TW5 TAP ISO 2284 Brooke 1/2" Pair 14 87 26 12.5 1 Box
You need to be logged in to see prices.
5571-00321 BSPF(G) 1/2 T'PR TW5 TAP ISO 2284 Brooke 1/2" Taper 14 87 26 12.5 1 Box
You need to be logged in to see prices.
5571-00322 BSPF(G) 1/2 SCND TW5 TAP ISO 2284 Brooke 1/2" Second 14 87 26 12.5 1 Box
You need to be logged in to see prices.
5571-00323 BSPF(G) 1/2 BOTG TW5 TAP ISO 2284 Brooke 1/2" Bottom 14 87 26 12.5 1 Box
You need to be logged in to see prices.
5571-0040 BSPF(G) 5/8 PAIR TW5 TAP ISO 2284 Brooke 5/8" Pair 14 91 26 14 1 Box
You need to be logged in to see prices.
5571-00401 BSPF(G) 5/8 T'PR TW5 TAP ISO 2284 Brooke 5/8" Taper 14 91 26 14 1 Box
You need to be logged in to see prices.
5571-00402 BSPF(G) 5/8 SCND TW5 TAP ISO 2284 Brooke 5/8" Second 14 91 26 14 1 Box
You need to be logged in to see prices.
5571-00403 BSPF(G) 5/8 BOTG TW5 TAP ISO 2284 Brooke 5/8" Bottom 14 91 26 14 1 Box
You need to be logged in to see prices.
5571-0048 BSPF(G) 3/4 PAIR TW5 TAP ISO 2284 Brooke 3/4" Pair 14 96 28 16 1 Box
You need to be logged in to see prices.
5571-00481 BSPF(G) 3/4 T'PR TW5 TAP ISO 2284 Brooke 3/4" Taper 14 96 28 16 1 Box
You need to be logged in to see prices.
5571-00482 BSPF(G) 3/4 SCND TW5 TAP ISO 2284 Brooke 3/4" Second 14 96 28 16 1 Box
You need to be logged in to see prices.
5571-00483 BSPF(G) 3/4 BOTG TW5 TAP ISO 2284 Brooke 3/4" Bottom 14 96 28 16 1 Box
You need to be logged in to see prices.
5571-0100 BSPF(G) 1 inch PAIR TW6 TAP ISO 2284 Brooke 1" Pair 11 109 33 20 1 Box
You need to be logged in to see prices.
5571-01001 BSPF(G) 1 inch T'PR TW6 TAP ISO 2284 Brooke 1" Taper 11 109 33 20 1 Box
You need to be logged in to see prices.
5571-01002 BSPF(G) 1 inch SCND TW6 TAP ISO 2284 Brooke 1" Second 11 109 33 20 1 Box
You need to be logged in to see prices.
5571-01003 BSPF(G) 1 BOTG TW6 TAP ISO 2284 Brooke 1" Bottom 11 109 33 20 1 Box
You need to be logged in to see prices.
5571-0116 BSPF(G) 1.1/4 PAIR TW6 TAP ISO 2284 Brooke 1.1/4" Pair 11 119 36 25 1 Box
You need to be logged in to see prices.
5571-01161 BSPF(G) 1.1/4 T'PR TW6 Brooke 1.1/4" Taper 11 119 36 25 1 Box
You need to be logged in to see prices.
5571-01162 BSPF(G) 1.1/4 SCND TW6 TAP ISO 2284 Brooke 1.1/4" Second 11 119 36 25 1 Box
You need to be logged in to see prices.
5571-01163 BSPF(G) 1.1/4 BOTG TW6 TAP ISO 2284 Brooke 1.1/4" Bottom 11 119 36 25 1 Box
You need to be logged in to see prices.
5571-0132 BSPF(G) 1.1/2 PAIR TW7 TAP ISO 2284 Brooke 1.1/2" Pair 11 125 37 28 1 Box
You need to be logged in to see prices.
5571-01321 BSPF(G) 1.1/2 T'PR TW7 TAP ISO 2284 Brooke 1.1/2" Taper 11 125 37 28 1 Box
You need to be logged in to see prices.
5571-01322 BSPF(G) 1.1/2 SCND TW7 TAP ISO 2284 Brooke 1.1/2" Second 11 125 37 28 1 Box
You need to be logged in to see prices.
5571-01323 BSPF(G) 1.1/2 BOTG TW7 TAP ISO 2284 Brooke 1.1/2" Bottom 11 125 37 28 1 Box
You need to be logged in to see prices.
5571-0200 BSPF(G) 2 PAIR TW7 TAP ISO 2284 Brooke 2" Pair 11 140 41 31.5 1 Box
You need to be logged in to see prices.
5571-02001 BSPF(G) 2" T'PR TW7 Brooke 2" Taper 11 140 41 31.5 1 Box
You need to be logged in to see prices.
5571-02002 BSPF(G) 2" SCND TW7 Brooke 2" Second 11 140 41 31.5 1 Box
You need to be logged in to see prices.
5571-02003 BSPF(G) 2 BOTG TW7 TAP ISO 2284 Brooke 2" Bottom 11 140 41 31.5 1 Box
You need to be logged in to see prices.
