Step Drills

Descriptions

Flute Type
Right hand cutting
Step Angel
90°
Point Angle
118°
Shank Type
3 flatted shank
Surface Treatment
Bright finish
Application
Cutting varying hole sizes in steel, high tensile steel up to 1.000N/mm2, cast steel, cast iron, metals and hard plastics up to 4mm thick without changing the drill bit. Each drill cuts parallel holes within a specific size range, 4-12mm rising in 1mm increments & 4-20mm & 4-30mm rising in 2mm increments
Manufactured To
Din 1412 C
Material
HSS

Specifications

Downloads

There are no downloads for this product.

You need to be logged in to see prices.

Code	Description	Step Increments of	Number of Steps	Shank Dia(mm)	Diameter	Pack Qty	Packaged In/On	Price
C131-0001	STD12 4 - 12 mm Step Drills	1mm	9 with 4mm cutting depth	6mm 3 flat	4 - 12mm	1	Boxed	You need to be logged in to see prices.
C131-0002	STD20 4 - 20 mm Step Drills	2mm	9 with 4mm cutting depth	8mm 3 flat	4 - 20 mm	1	Boxed	You need to be logged in to see prices.
C131-0003	STD30 4 - 30 mm Step Drills	2mm	14 with 4mm cutting depth	10mm 3 flat	4 - 30 mm	1	Boxed	You need to be logged in to see prices.

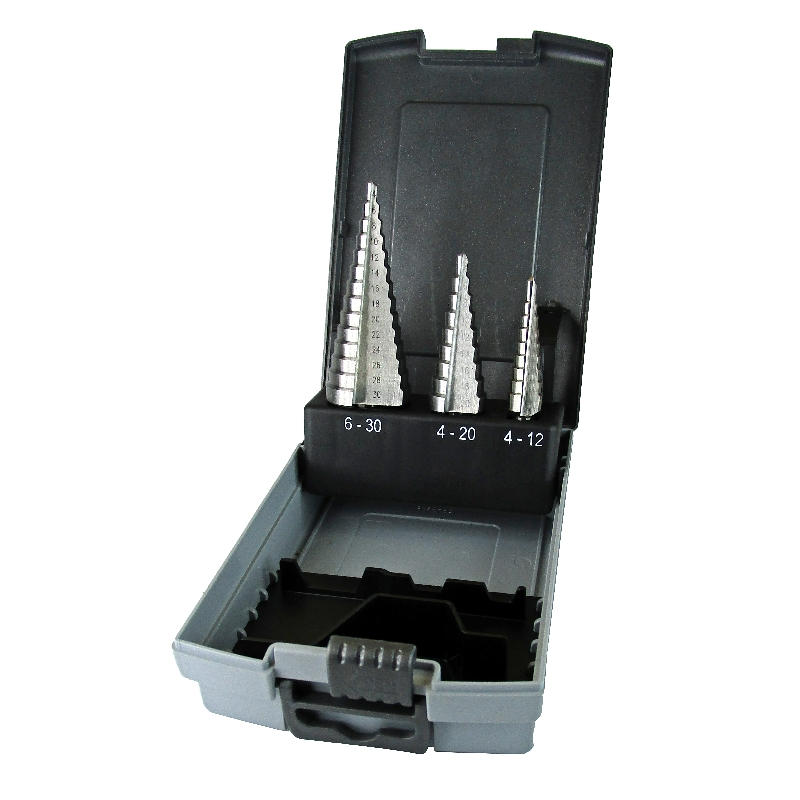

C131-0004SET	3pcs HSS Straight Flute Step Drill Set 4-12,4-20,4-30	4-12mm (1mm), 4-20mm (2mm), 4-30mm (2mm)	4-12mm(9), 4-20mm(9), 4-30mm(14), with 4mm cutting depth	6mm 3 flat, 8mm 3 flat, 10mm 3 flat	4-12mm, 4-20mm, 4-30mm	1	Plastic case	You need to be logged in to see prices.
