ADZe HSS-Co5 Cobalt Long Series Drills

Flute Type
Parabolic flute form,right hand helix
Point Angle
135° split point
Surface Treatment
Bright
Application
For drilling deep holes in steel, high tensile steel up to 1000N/mm2, stainless steel V2A/V4A, cast steel, cast iron,non-ferrous metals and hard plastics. Parabolic flute design offers wide flutes combining with a higher helix to eliminate chip ejection difficulties.
Manufactured To

Din 340
Material
HSS-Co5
PLEASE NOTE: Prices are per drill not pack Qty.

There are no downloads for this product.

You need to be logged in to see prices.
Code Description Diameter Flute Length (mm) Overall Length (mm) Pack Qty Packaged In/On Price

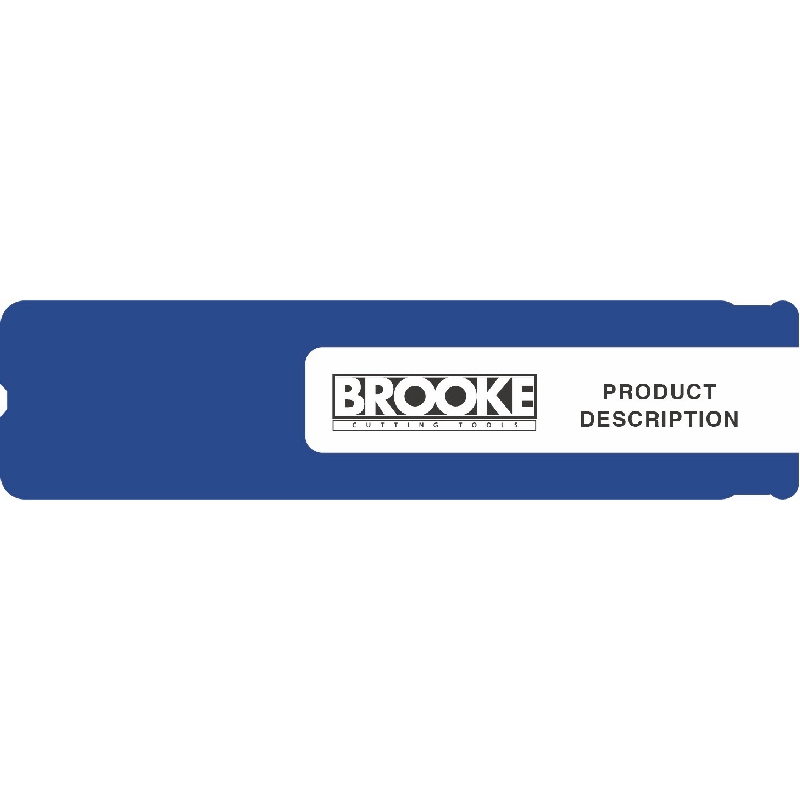

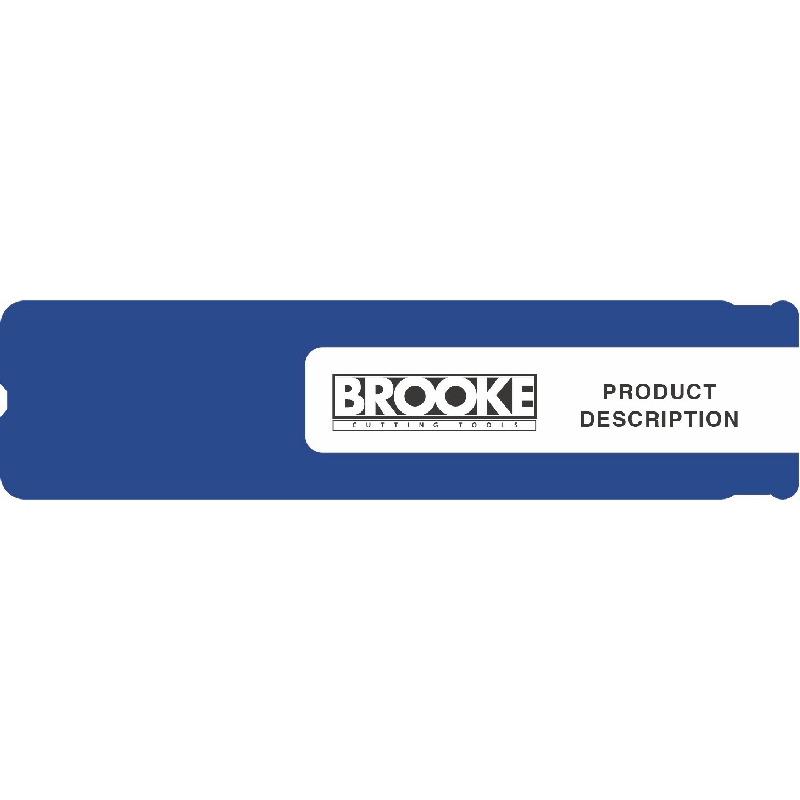

5109-0030 PS ADZe DIN340 3.00 HSS-Co5 Long Series 3.0mm 66 100 10 Box
5109-0033 PS ADZe DIN340 3.30 HSS-Co5 Long Series 3.3mm 69 106 10 Box
5109-0040 PS ADZe DIN340 4.00 HSS-Co5 Long Series 4.0mm 78 119 10 Box
5109-0042 PS ADZe DIN340 4.20 HSS-Co5 Long Series 4.2mm 78 119 10 Box
5109-0045 PS ADZe DIN340 4.50 HSS-Co5 Long Series 4.5mm 82 126 10 Box
5109-0050 PS ADZe DIN340 5.00 HSS-Co5 Long Series 5.0mm 87 132 10 Box
5109-0065 PS ADZe DIN340 6.50 HSS-Co5 Long Series 6.5mm 97 148 10 Box
5109-0068 PS ADZe DIN340 6.80 HSS-Co5 Long Series 6.8mm 102 156 10 Box
5109-0070 PS ADZe DIN340 7.00 HSS-Co5 Long Series 7.0mm 102 156 10 Box
5109-0075 PS ADZe DIN340 7.50 HSS-Co5 Long Series 7.5mm 102 156 10 Box
5109-0085 PS ADZe DIN340 8.50 HSS-Co5 Long Series 8.5mm 109 165 10 Box
5109-0090 PS ADZe DIN340 9.00 HSS-Co5 Long Series 9.0mm 115 175 10 Box
5109-0100 PS ADZe DIN340 10.00 HSS-Co5 Long Series 10.0mm 121 184 10 Box
5109-0102 PS ADZe DIN340 10.20 HSS-Co5 Long Series 10.2mm 121 184 5 Box
5109-0120 PS ADZe DIN340 12.00 HSS-Co5 Long Series 12.0mm 134 205 5 Box
5109-0130 PS ADZe DIN340 13.00 HSS-Co5 Long Series 13.0mm 134 205 5 Box
