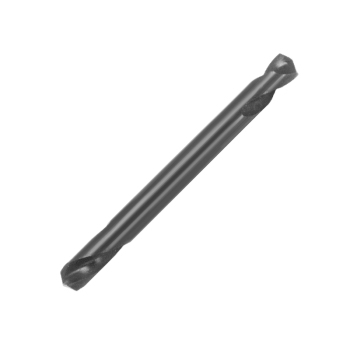

Double Ended Body Drill Bits

Descriptions

Flute Type
Standard helix,right hand spiral.
Point Angle
135° split point
Surface Treatment
Blue oxide
Application
Self centring drill designed to produce accurate holes in thin materials/white goods.
Manufactured To
Work standard
Material
HSS

Specifications

Downloads

There are no downloads for this product.

You need to be logged in to see prices.

Code	Description	Diameter	Flute Length (mm)	Overall Length (mm)	Pack Qty	Packaged In/On	Price
5151-0032	Dble End Body 3.20	3.2	10	49	1	Box	You need to be logged in to see prices.
5151-00325	Dble End Body 3.25	3.25	10	49	Box		You need to be logged in to see prices.
5151-0033	Dble End Body 3.30	3.3	10	49	1	Box	You need to be logged in to see prices.
5151-0035	Dble End Body 3.50	3.5	11	52	1	Box	You need to be logged in to see prices.
5151-0040	Dble End Body 4.00	4	12	55	1	Box	You need to be logged in to see prices.
5151-0041	Dble End Body 4.10	4.1	12	55	1	Box	You need to be logged in to see prices.
5151-0042	Dble End Body 4.20	4.2	12	55	1	Box	You need to be logged in to see prices.
5151-0043	Dble End Body 4.30	4.3	12	55	1	Box	You need to be logged in to see prices.
5151-0045	Dble End Body 4.50	4.5	13	58	1	Box	You need to be logged in to see prices.
5151-0049	Dble End Body 4.90	4.9	14	62	Box		You need to be logged in to see prices.
5151-0050	Dble End Body 5.00	5	14	62	1	Box	You need to be logged in to see prices.
5151-0058	Dble End Body 5.80	5.8	15	66	1	Box	You need to be logged in to see prices.
