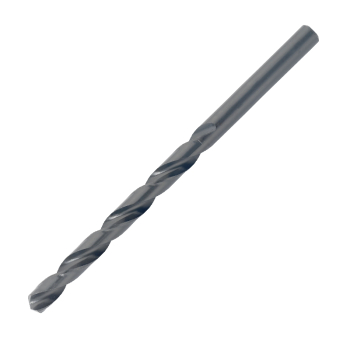

HSS-G Long Series Drill Bits

Descriptions

Flute Type
Standard helix,right hand,ground flutes
Point Angle
135° split point
Surface Treatment
Blue oxide
Application
Drills in steel, high tensile steel up to 900N/mm2, cast steel, cast iron, non-ferrous metals and hard plastics.
Manufactured To
Din 340
Material
HSS
PLEASE NOTE: Prices are per drill not pack Qty.

Specifications

Downloads

There are no downloads for this product.

You need to be logged in to see prices.

Code	Description	Diameter	Flute Length(mm)	Overall Length(mm)	Pack Qty	Packaged In/On	Price
5116-0010	PS LONG SERIES 1.0	1.0mm	33	56	10	Box	You need to be logged in to see prices.
5116-0015	PS LONG SERIES 1.5	1.5mm	45	70	10	Box	You need to be logged in to see prices.
5116-0020	PS LONG SERIES 2.0	2.0mm	56	85	10	Box	You need to be logged in to see prices.
5116-0025	PS LONG SERIES 2.5	2.5mm	62	95	10	Box	You need to be logged in to see prices.
5116-0030	PS LONG SERIES 3.0	3.0mm	66	100	10	Box	You need to be logged in to see prices.
5116-0032	PS LONG SERIES 3.2	3.2mm	69	106	10	Box	You need to be logged in to see prices.
5116-0033	PS LONG SERIES 3.3	3.3mm	69	106	10	Box	You need to be logged in to see prices.
5116-0035	PS LONG SERIES 3.5	3.5mm	73	112	10	Box	You need to be logged in to see prices.
5116-0040	PS LONG SERIES 4.0	4.0mm	78	119	10	Box	You need to be logged in to see prices.
5116-0042	PS LONG SERIES 4.2	4.2mm	78	119	10	Box	You need to be logged in to see prices.
5116-0045	PS LONG SERIES 4.5	4.5mm	82	126	10	Box	You need to be logged in to see prices.
5116-0048	PS LONG SERIES 4.8	4.8mm	87	126	10	Box	You need to be logged in to see prices.
5116-0050	PS LONG SERIES 5.0	5.0mm	87	132	10	Box	You need to be logged in to see prices.
5116-0055	PS LONG SERIES 5.5	5.5mm	91	139	10	Box	You need to be logged in to see prices.
5116-0060	PS LONG SERIES 6.0	6.0mm	91	148	10	Box	You need to be logged in to see prices.
5116-0065	PS LONG SERIES 6.5	6.5mm	97	156	10	Box	You need to be logged in to see prices.
5116-0068	PS LONG SERIES 6.8	6.8mm	102	156	10	Box	You need to be logged in to see prices.
5116-0070	PS LONG SERIES 7.0	7.0mm	102	156	10	Box	You need to be logged in to see prices.
5116-0075	PS LONG SERIES 7.5	7.5mm	102	165	10	Box	You need to be logged in to see prices.
5116-0080	PS LONG SERIES 8.0	8.0mm	109	165	10	Box	You need to be logged in to see prices.
5116-0085	PS LONG SERIES 8.5	8.5mm	109	165	10	Box	You need to be logged in to see prices.
5116-0090	PS LONG SERIES 9.0	9.0mm	115	175	10	Box	You need to be logged in to see prices.
5116-0095	PS LONG SERIES 9.5	9.5mm	115	175	10	Box	You need to be logged in to see prices.
5116-0100	PS LONG SERIES 10.0	10.0mm	121	184	10	Box	You need to be logged in to see prices.
5116-0102	PS LONG SERIES 10.2	10.2mm	121	184	5	Box	You need to be logged in to see prices.
5116-0105	PS LONG SERIES 10.5	10.5mm	121	184	5	Box	You need to be logged in to see prices.
5116-0110	PS LONG SERIES 11.0	11.0mm	128	195	5	Box	You need to be logged in to see prices.
5116-0115	PS LONG SERIES 11.5	11.5mm	128	195	5	Box	You need to be logged in to see prices.
5116-0120	PS LONG SERIES 12.0	12.0mm	134	205	5	Box	You need to be logged in to see prices.
5116-0125	PS LONG SERIES 12.5	12.5mm	134	205	5	Box	You need to be logged in to see prices.
5116-0130	PS LONG SERIES 13.0	13.0mm	134	205	5	Box	You need to be logged in to see prices.
5116-0140	PS LONG SERIES 14.0	14.0mm	140	214	1	Box	You need to be logged in to see prices.
5116-1004	PS LONG SERIES 1/16	1/16"	50	76	10	Box	You need to be logged in to see prices.
5116-1006	PS LONG SERIES 3/32	3/32"	62	95	10	Box	You need to be logged in to see prices.
5116-1007	PS LONG SERIES 7/64	7/64"	66	100	10	Box	You need to be logged in to see prices.
5116-1008	PS LONG SERIES 1/8	1/8"	69	106	10	Box	You need to be logged in to see prices.
5116-1010	PS LONG SERIES 5/32	5/32"	78	119	10	Box	You need to be logged in to see prices.
5116-1012	PS LONG SERIES 3/16	3/16"	87	126	10	Box	You need to be logged in to see prices.
5116-1013	PS LONG SERIES 13/64	13/64"	87	132	10	Box	You need to be logged in to see prices.
5116-1014	PS LONG SERIES 7/32	7/32"	91	139	10	Box	You need to be logged in to see prices.
5116-1016	PS LONG SERIES 1/4	1/4"	97	148	10	Box	You need to be logged in to see prices.
5116-1020	PS LONG SERIES 5/16	5/16"	109	165	10	Box	You need to be logged in to see prices.
5116-1024	PS LONG SERIES 3/8	3/8"	121	184	10	Box	You need to be logged in to see prices.
5116-1028	PS LONG SERIES 7/16	7/16"	128	195	5	Box	You need to be logged in to see prices.
5116-1032	PS LONG SERIES 1/2	1/2"	134	205	5	Box	You need to be logged in to see prices.
