Heavy Duty TCT Core Drills

It is attention to every detail that makes the Heavy Duty core Drills class leaders. They are machined from solid steel billets.
Both interior and exterior surfaces are machined to standards eliminating any fear of future fatigue failures.
The tungsten carbide tips are designed for fast cutting. The “ chipbreaker” tip seat reliefs ensure that debris is transported away from the workplace quickly. The body flutes move the debris out of the cut.
There are more carbide tips in a Heavy Duty Core Drill.
This extends life and provides the user with exceptionalvalue for money.
More carbide tips mean a smoother operation.
Accuracy of top seating and precision body machining ensures snag free cutting which is kinder to the operator and the machine.

There are no downloads for this product.

You need to be logged in to see prices.

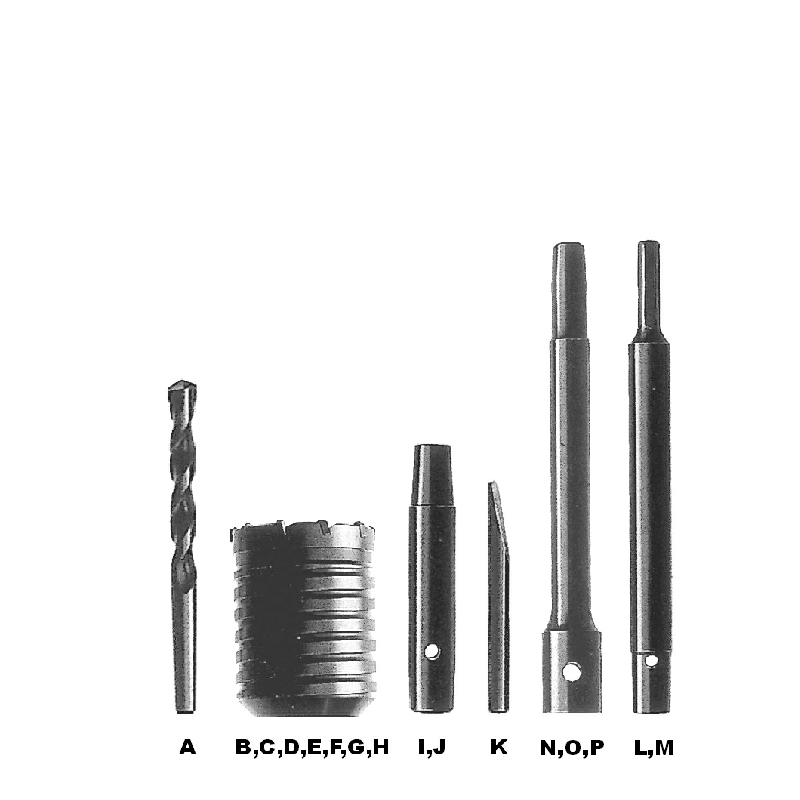

Code Description Size & Description Flute Length(mm) Overall Length(mm) Core Depth Key Code Pack Qty Packaged In/On Price
C240-0034 3325 M50 50mm Shell Only Core Drills Heavy Duty 50mm Shell Only 75mm B 1 Box
C240-0036 3327 M65 65mm Shell Only Core Drills Heavy Duty 65mm Shell Only 75mm C 1 Box
C240-0037 3328 M76 76mm Shell Only Core Drills Heavy Duty 76mm Shell Only 75mm D 1 Box
C240-0041 3331 M100 100mm Shell Only Core Drills Heavy Duty 100mm Shell Only 75mm E 1 Box
C240-0042 3333 M115 115mm Shell Only Core Drills Heavy Duty 115mm Shell Only 75mm F 1 Box
C240-0043 3332 M125 125mm Shell Only Core Drills Heavy Duty 125mm Shell Only 75mm G 1 Box
C240-0044 3335 M150 150mm Shell Only Core Drills Heavy Duty 150mm Shell Only 75mm H 1 Box
C240-0019 3305 M50E 50mm Core Drills Heavy Duty 50mm Shell Complete 75mm A,B,I,K 1 Box
C240-0021 3307 M65 65mm Core Drill Heavy Duty 65mm Shell Complete 75mm A,C,I,K 1 Box
C240-0022 3308 M76 76mm Core Drill Heavy Duty 76mm Shell Complete 75mm A,D,I,K 1 Box
C240-0026 3311 M100E 100mm Core Drills Heavy Duty 100mm Shell Complete 75mm A,E,I,K 1 Box
C240-0027 3313 M115E 115mm Core Drills Heavy Duty 115mm Shell Complete 75mm A,F,I,K 1 Box
C240-0028 3312 M125 125mm Core Drill Heavy Duty 125mm Shell Complete 75mm A,G,I,K 1 Box
C245-0001 3338 PD11 11 x 125mm Pilot Drl Extension Rods & Accessories 11 x 125mm A Taper 70 125 A 1 Box
C245-0002 4503 ED1 Ext.Drift For AD3120 Extension Rods & Accessories Drift Key 80 k 1 Box
C240-0058 4530 120mm Core Drill Adaptor 120mm Adaptor 120 I 1 Box
C240-0059 4531 250mm Core Drill Adaptor 250mm Adaptor 250 J 1 Box
C240-0061 4502 K10K 250mm K Taper Core Drills Heavy Duty - K Tap 250mm K Taper Ext 250 N 1 Box
C240-0062 4505 K16K 400mm K Taper Core Drills Heavy Duty - K Tap 400mm K Taper Ext 400 O 1 Box
C240-0063 4527 K Taper Ext Rod 550 550mm K Taper Ext 550 P 1 Box
C800-0446 SDS PLUS TO K TAPER ADAPTOR 110mm SDS Plus to K Taper 110 L 1 Box
C800-0066 SDS MAX TO K TAPER ADAPTOR 180mm SDS Max to K Taper 180 M 1 Box
