Threading Dies(Metric Coarse)
Threading Dies(Metric Coarse)

Threading Dies(Metric Coarse)

Descriptions

Type of Thread
Metric coarse
Tolerance
6g
Surface Treatment
Bright
Application
For threading steel, some stainless steels, cast irons and non-ferrous materials such as Aluminium & Brass.
Manufactured To
BS 1127:1950
Material
HSS
Set Consists of
Taper,second,bottom

There are no downloads for this product.

You need to be logged in to see prices.

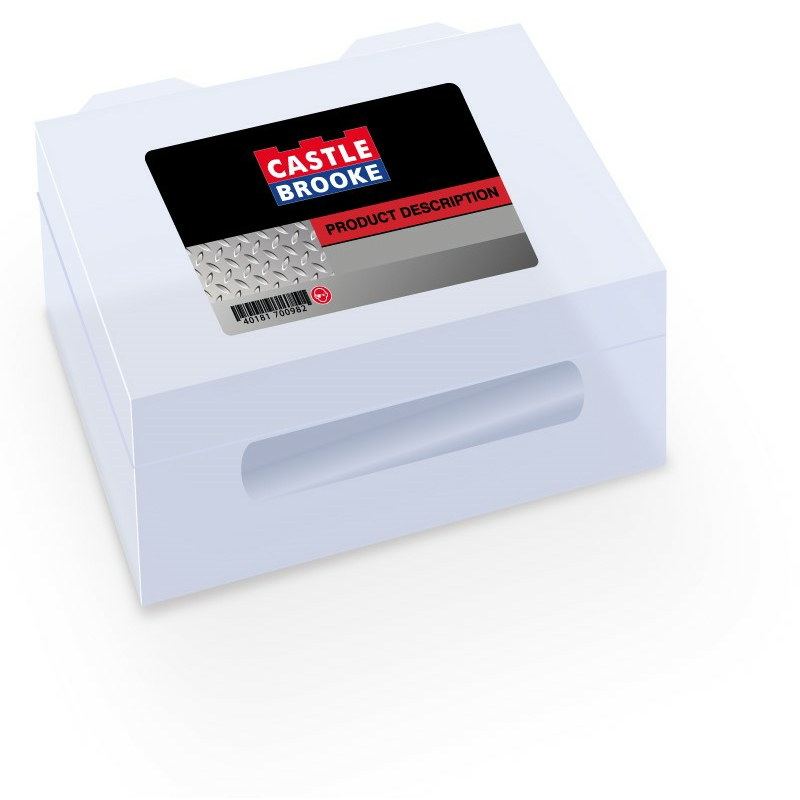

Code Description Diameter Pitch(mm) Die O/D Pack Qty Packaged In/On Price
6210-0009 HSS M3.0x0.50x13/16 inch METRIC DIES Brooke 3.0mm 0.5 13/16" 1 Box
You need to be logged in to see prices.
6210-0010 HSS M3.5x0.60x13/16 inch METRIC DIES Brooke 3.0mm 0.6 13/16" 1 Box
You need to be logged in to see prices.
6210-0011 HSS M4.0x0.70x13/16 inch METRIC DIES Brooke 4.0mm 0.7 13/16" 1 Box
You need to be logged in to see prices.
6210-0022 HSS M5.0x0.80x1 inch METRIC DIES Brooke 5.0mm 0.8 1" 1 Box
You need to be logged in to see prices.
6210-0023 HSS M6.0x1.00x1 inch METRIC DIES Brooke 6.0mm 1 1" 1 Box
You need to be logged in to see prices.
6210-0025 HSS M8.0x1.25x1 inch METRIC DIES Brooke 8.0mm 1.25 1" 1 Box
You need to be logged in to see prices.
6210-0027 HSS M10.0x1.50x1 inch METRIC DIES Brooke 10.0mm 1.5 1" 1 Box
You need to be logged in to see prices.
6210-0046 HSS M12x1.75x1-1/2 inch METRIC DIES Brooke 12.0mm 1.75 1.1/2" 1 Box
You need to be logged in to see prices.
6210-0047 HSS M14x2.00x1-1/2 inch METRIC DIES Brooke 14.0mm 2 1.1/2" 1 Box
You need to be logged in to see prices.
6210-0048 HSS M16x2.00x1-1/2 inch METRIC DIES Brooke 16.0mm 2 1.1/2" 1 Box
You need to be logged in to see prices.
6210-0049 HSS M18x2.50x1-1/2 inch METRIC DIES Brooke 18.0mm 2.5 1.1/2" 1 Box
You need to be logged in to see prices.
6210-0050 HSS M20x2.50x1-1/2 inch METRIC DIES Brooke 20.0mm 2.5 1.1/2" 1 Box
You need to be logged in to see prices.
6210-0066 HSS M22x2.50x2 inch METRIC DIES Brooke 22.0mm 2.5 2" 1 Box
